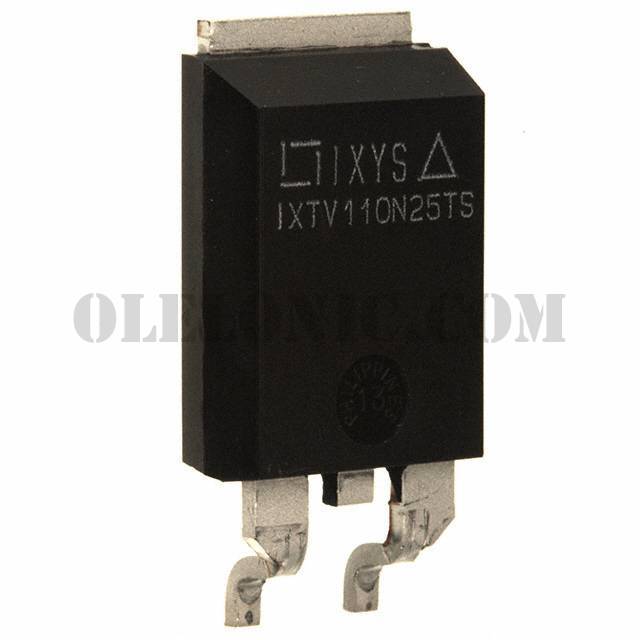

IXTV110N25TS

Part NumberIXTV110N25TS

ManufacturerIXYS

DescriptionMOSFET N-CH 250V 110A PLUS220SMD

DatasheetIXT(H,V)110N25T(S)

Package / CasePLUS-220SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 250V 110A (Tc) 694W (Tc) Surface Mount PLUS-220SMD

To learn about the specification of IXTV110N25TS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTV110N25TS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTV110N25TS.
We are offering IXTV110N25TS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTV110N25TS - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXT(H,V)110N25T(S)

Standard Package

Manufacturer

IXYS

Series

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

250V

Current - Continuous Drain (Id) @ 25°C

110A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

24mOhm @ 55A, 10V

Vgs(th) (Max) @ Id

4.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

157nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

9400pF @ 25V

FET Feature

Power Dissipation (Max)

694W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PLUS-220SMD

Package / Case
