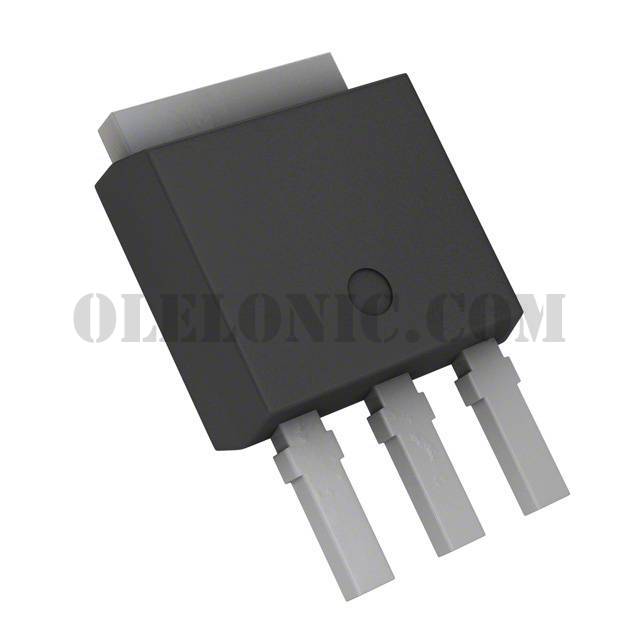

IXTU8N70X2

Part NumberIXTU8N70X2

ManufacturerIXYS

DescriptionMOSFET N-CHANNEL 700V 8A TO251

DatasheetIXTx8N70X2

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 700V 8A (Tc) 150W (Tc) Through Hole TO-251-3

To learn about the specification of IXTU8N70X2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTU8N70X2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTU8N70X2.
We are offering IXTU8N70X2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTU8N70X2 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXTx8N70X2

Standard Package

Manufacturer

IXYS

Series

Packaging

Tube

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

700V

Current - Continuous Drain (Id) @ 25°C

8A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

500mOhm @ 500mA, 10V

Vgs(th) (Max) @ Id

4.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

12nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

800pF @ 10V

FET Feature

Power Dissipation (Max)

150W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-251-3

Package / Case

TO-251-3 Stub Leads, IPak
