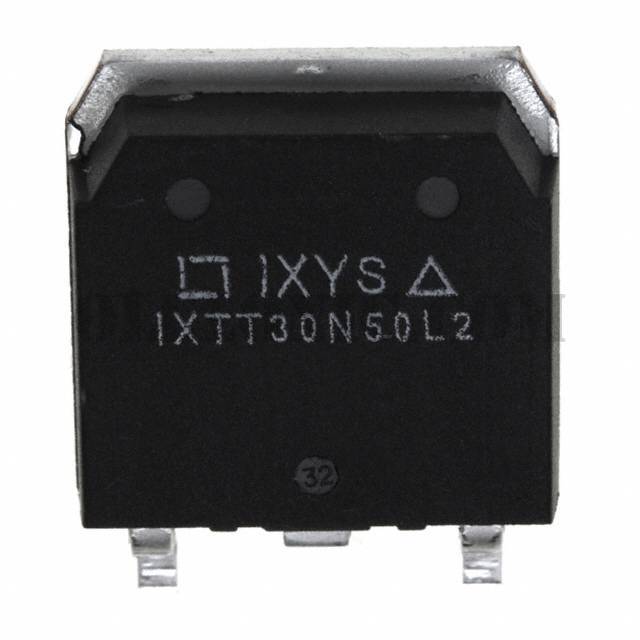

IXTT30N50L2

IXTT30N50L2

Part NumberIXTT30N50L2

ManufacturerIXYS

DescriptionMOSFET N-CH 500V 30A TO-268

DatasheetIXT(H,Q,T)30N50L2

Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 30A (Tc) 400W (Tc) Surface Mount TO-268

To learn about the specification of IXTT30N50L2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTT30N50L2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTT30N50L2.
We are offering IXTT30N50L2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTT30N50L2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXT(H,Q,T)30N50L2
Standard Package	30
Manufacturer	IXYS
Series	Linear L2™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	200mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	240nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8100pF @ 25V
FET Feature	-
Power Dissipation (Max)	400W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
