IXTI12N50P

Part NumberIXTI12N50P

ManufacturerIXYS

DescriptionMOSFET N-CH 500V 12A I2-PAK

DatasheetIXT(A,I,P) 12N50P

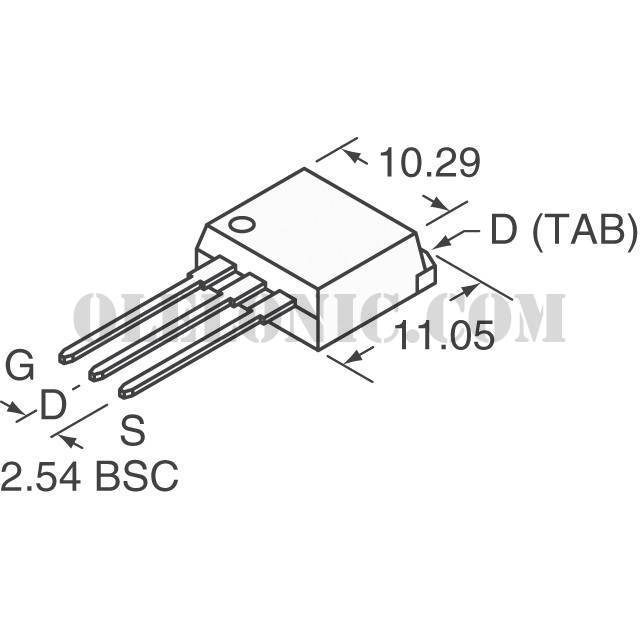

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 12A (Tc) 200W (Tc) Through Hole TO-262 (I2PAK)

To learn about the specification of IXTI12N50P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTI12N50P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTI12N50P.
We are offering IXTI12N50P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTI12N50P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXT(A,I,P) 12N50P

Standard Package

Manufacturer

IXYS

Series

Polar™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

500V

Current - Continuous Drain (Id) @ 25°C

12A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

500mOhm @ 6A, 10V

Vgs(th) (Max) @ Id

5.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

29nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

1830pF @ 25V

FET Feature

Power Dissipation (Max)

200W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-262 (I2PAK)

Package / Case

TO-262-3 Long Leads, I²Pak, TO-262AA
