IXTH200N10T

IXTH200N10T

Part NumberIXTH200N10T

ManufacturerIXYS

DescriptionMOSFET N-CH 100V 200A TO-247

DatasheetIXT(H,Q)200N10T

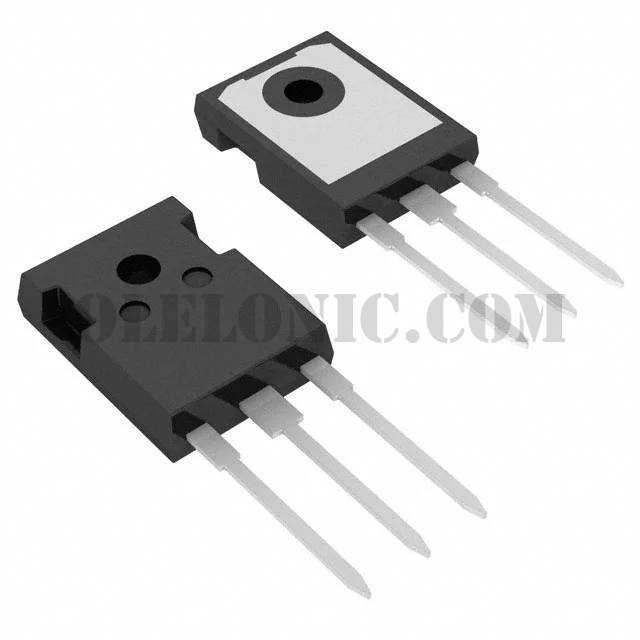

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 200A (Tc) 550W (Tc) Through Hole TO-247 (IXTH)

To learn about the specification of IXTH200N10T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTH200N10T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTH200N10T.
We are offering IXTH200N10T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTH200N10T - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXT(H,Q)200N10T
Standard Package	30
Manufacturer	IXYS
Series	TrenchMV™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	152nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	9400pF @ 25V
FET Feature	-
Power Dissipation (Max)	550W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247 (IXTH)
Package / Case	TO-247-3
