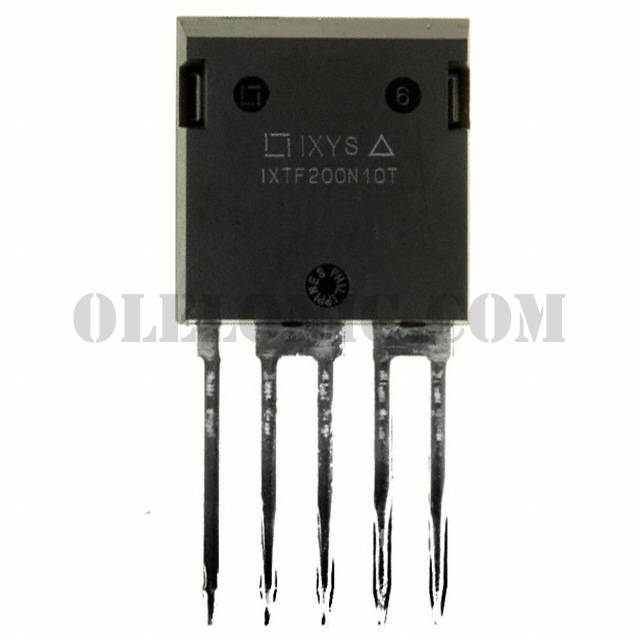

IXTF200N10T

Part NumberIXTF200N10T

ManufacturerIXYS

DescriptionMOSFET N-CH 100V 90A I4-PAC-5

DatasheetIXTF200N10T

Package / Casei4-Pac™-5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 90A (Tc) 156W (Tc) Through Hole ISOPLUS i4-PAC™

To learn about the specification of IXTF200N10T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTF200N10T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTF200N10T.
We are offering IXTF200N10T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTF200N10T - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXTF200N10T

Standard Package

Manufacturer

IXYS

Series

TrenchMV™

Packaging

Tube

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

100V

Current - Continuous Drain (Id) @ 25°C

90A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

7mOhm @ 50A, 10V

Vgs(th) (Max) @ Id

4.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

152nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

9400pF @ 25V

FET Feature

Power Dissipation (Max)

156W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

ISOPLUS i4-PAC™

Package / Case

i4-Pac™-5
