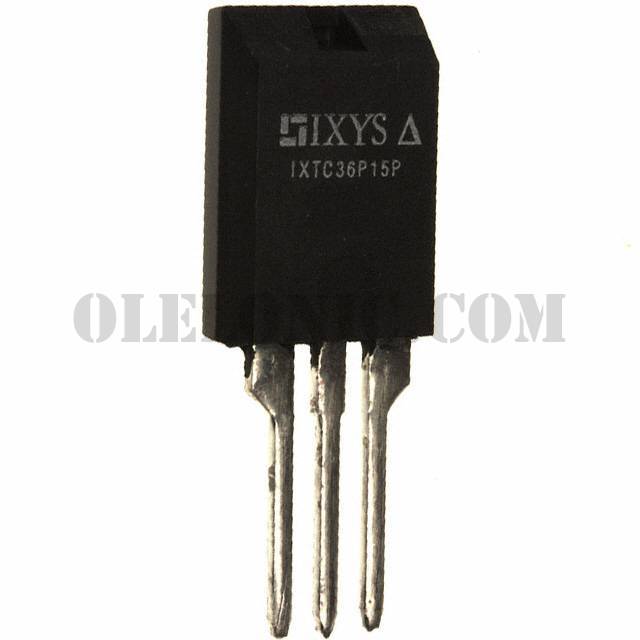

IXTC36P15P

Part NumberIXTC36P15P

ManufacturerIXYS

DescriptionMOSFET P-CH 150V 22A ISOPLUS220

DatasheetIXT(C,R)36P15P

Package / CaseISOPLUS220™

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 150V 22A (Tc) 150W (Tc) Through Hole ISOPLUS220™

To learn about the specification of IXTC36P15P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTC36P15P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTC36P15P.
We are offering IXTC36P15P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTC36P15P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXT(C,R)36P15P

Standard Package

Manufacturer

IXYS

Series

PolarP™

Packaging

Tube

Part Status

Obsolete

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

150V

Current - Continuous Drain (Id) @ 25°C

22A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

120mOhm @ 18A, 10V

Vgs(th) (Max) @ Id

5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

55nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

2950pF @ 25V

FET Feature

Power Dissipation (Max)

150W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

ISOPLUS220™

Package / Case
