IXTA05N100HV

IXTA05N100HV

Part NumberIXTA05N100HV

ManufacturerIXYS

DescriptionMOSFET N-CH 1KV 750MA TO263

DatasheetIXT(A,P)05N100

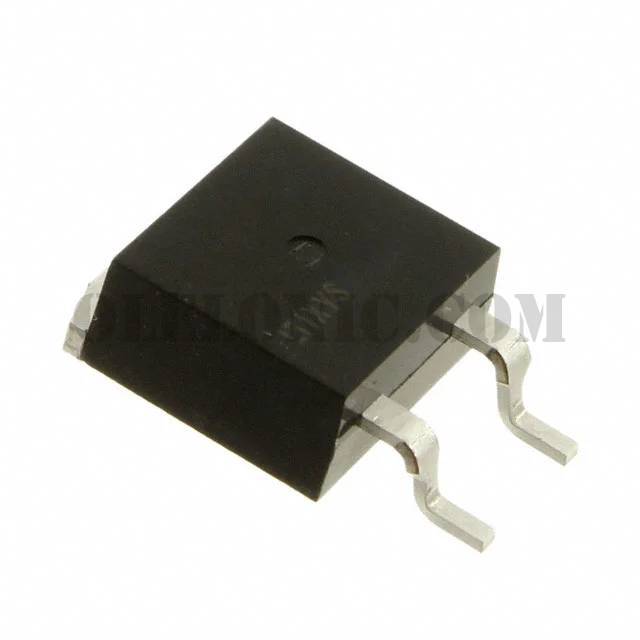

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1000V 750mA (Tc) 40W (Tc) Surface Mount TO-263

To learn about the specification of IXTA05N100HV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTA05N100HV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTA05N100HV.
We are offering IXTA05N100HV for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTA05N100HV - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXT(A,P)05N100
Standard Package	50
Manufacturer	IXYS
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	750mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	17Ohm @ 375mA, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	260pF @ 25V
FET Feature	-
Power Dissipation (Max)	40W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
