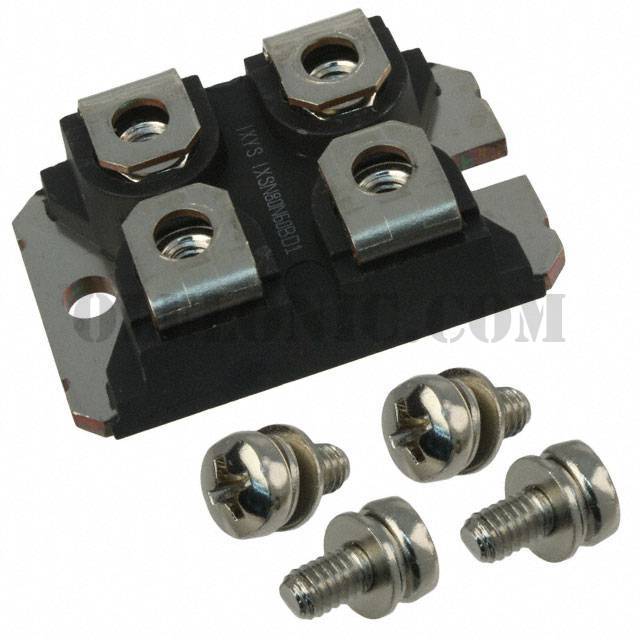

IXSN80N60AU1

Part NumberIXSN80N60AU1

ManufacturerIXYS

DescriptionIGBT 100A 600V SOT-227B

DatasheetIXSN80N60AU1

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Single 600V 160A 500W Chassis Mount SOT-227B

To learn about the specification of IXSN80N60AU1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXSN80N60AU1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXSN80N60AU1.
We are offering IXSN80N60AU1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXSN80N60AU1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

IXSN80N60AU1

Standard Package

Manufacturer

IXYS

Series

Part Status

Obsolete

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

160A

Power - Max

500W

Vce(on) (Max) @ Vge, Ic

3V @ 15V, 80A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

8.5nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SOT-227-4, miniBLOC

Supplier Device Package

SOT-227B

Base Part Number

IXS*80N60
