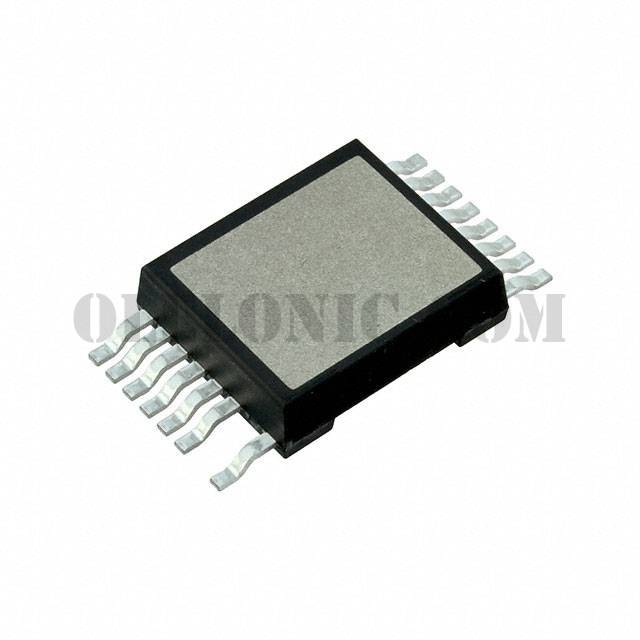

IXRFSM18N50

Part NumberIXRFSM18N50

ManufacturerIXYS-RF

To learn about the specification of IXRFSM18N50, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXRFSM18N50 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXRFSM18N50.
We are offering IXRFSM18N50 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Standard Package	30
Manufacturer	IXYS-RF
Series	SMPD
Packaging	Tube
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	340mOhm @ 9.5A, 20V
Vgs(th) (Max) @ Id	6.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	42nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2250pF @ 400V
FET Feature	-
Power Dissipation (Max)	835W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	16-SMPD
Package / Case	16-BESOP (0.790", 20.11mm Width), 15 Leads, Exposed Pad
