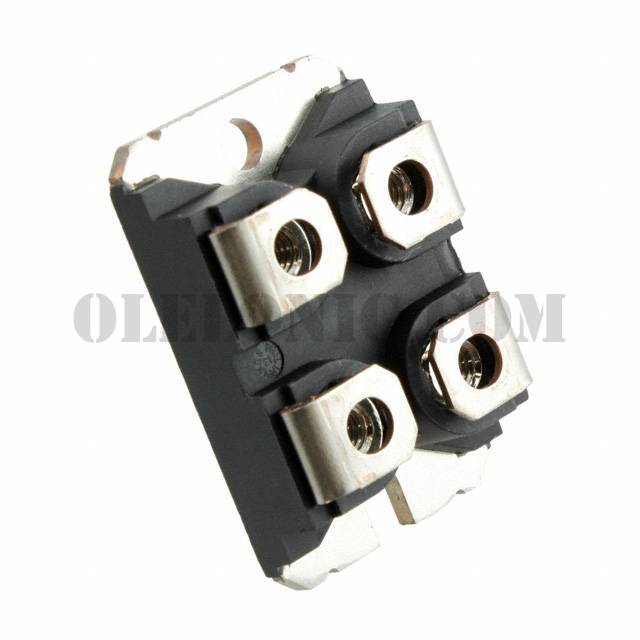

IXGN72N60A3

Part NumberIXGN72N60A3

ManufacturerIXYS

DescriptionIGBT 160A 600V SOT-227B

DatasheetIXGN72N60A3

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module PT Single 600V 160A 360W Chassis Mount SOT-227B

To learn about the specification of IXGN72N60A3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXGN72N60A3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXGN72N60A3.
We are offering IXGN72N60A3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXGN72N60A3 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

IXGN72N60A3

Standard Package

Manufacturer

IXYS

Series

GenX3™

Part Status

Active

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

160A

Power - Max

360W

Vce(on) (Max) @ Vge, Ic

1.35V @ 15V, 60A

Current - Collector Cutoff (Max)

75µA

Input Capacitance (Cies) @ Vce

6.6nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SOT-227-4, miniBLOC

Supplier Device Package

SOT-227B

Base Part Number

IXG*72N60
