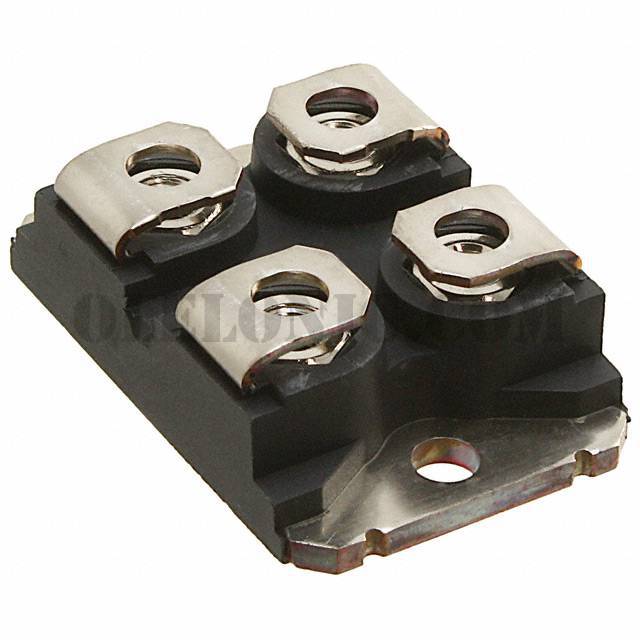

IXGN200N60B

Part NumberIXGN200N60B

ManufacturerIXYS

DescriptionIGBT FAST 600V 200A SOT-227B

DatasheetIXGN200N60B

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module PT Single 600V 200A 600W Chassis Mount SOT-227B

To learn about the specification of IXGN200N60B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXGN200N60B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXGN200N60B.
We are offering IXGN200N60B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXGN200N60B - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

IXGN200N60B

Standard Package

Manufacturer

IXYS

Series

HiPerFAST™

Part Status

Obsolete

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

200A

Power - Max

600W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 120A

Current - Collector Cutoff (Max)

200µA

Input Capacitance (Cies) @ Vce

11nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SOT-227-4, miniBLOC

Supplier Device Package

SOT-227B

Base Part Number

IXG*200N60
