IXGM40N60A

Part NumberIXGM40N60A

ManufacturerIXYS

DescriptionIGBT LO VOLT 600V 75AMP TO-204AE

DatasheetIXG(H,M)40N60/A

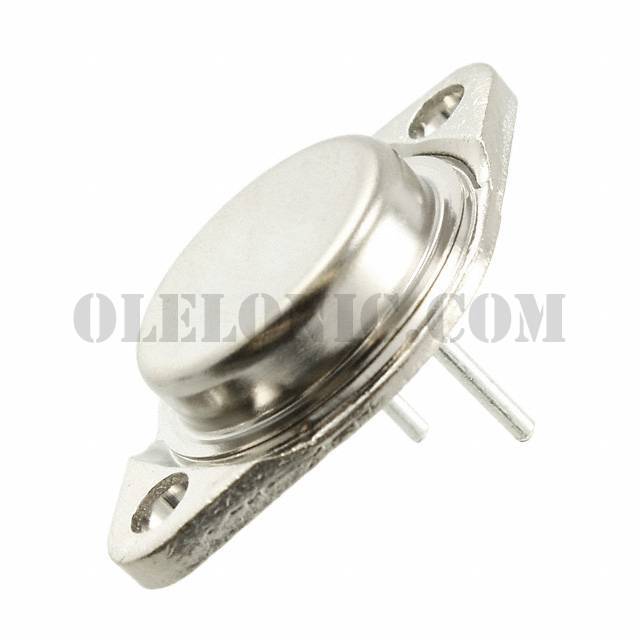

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Single 600V 75A 250W Chassis Mount TO-204

To learn about the specification of IXGM40N60A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXGM40N60A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXGM40N60A.
We are offering IXGM40N60A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXGM40N60A - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

IXG(H,M)40N60/A

Standard Package

Manufacturer

IXYS

Series

Part Status

Obsolete

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

75A

Power - Max

250W

Vce(on) (Max) @ Vge, Ic

3V @ 15V, 40A

Current - Collector Cutoff (Max)

200µA

Input Capacitance (Cies) @ Vce

4.5nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-204

Base Part Number

IXG*40N60
