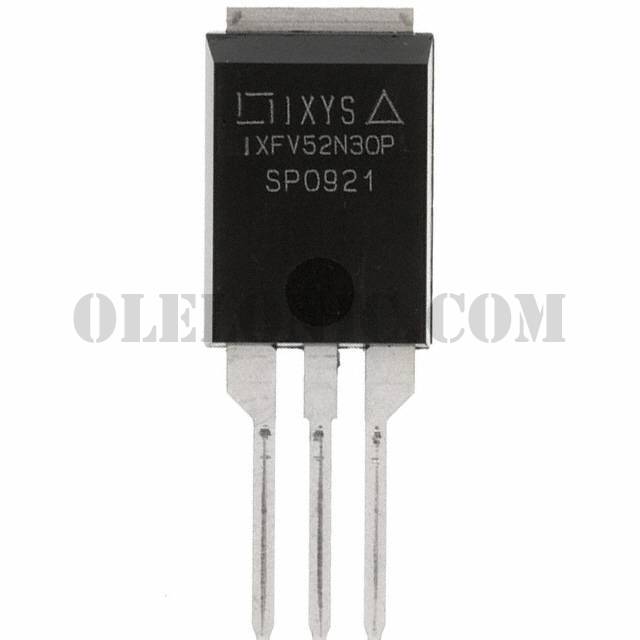

IXFV52N30P

Part NumberIXFV52N30P

ManufacturerIXYS

DescriptionMOSFET N-CH 300V 52A PLUS220

DatasheetIXF(H,V)52N30P(S)

Package / CaseTO-220-3, Short Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 300V 52A (Tc) 400W (Tc) Through Hole PLUS220

To learn about the specification of IXFV52N30P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFV52N30P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFV52N30P.
We are offering IXFV52N30P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFV52N30P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXF(H,V)52N30P(S)

Standard Package

Manufacturer

IXYS

Series

PolarHT™ HiPerFET™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

300V

Current - Continuous Drain (Id) @ 25°C

52A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

66mOhm @ 500mA, 10V

Vgs(th) (Max) @ Id

5V @ 4mA

Gate Charge (Qg) (Max) @ Vgs

110nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

3490pF @ 25V

FET Feature

Power Dissipation (Max)

400W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PLUS220

Package / Case

TO-220-3, Short Tab
