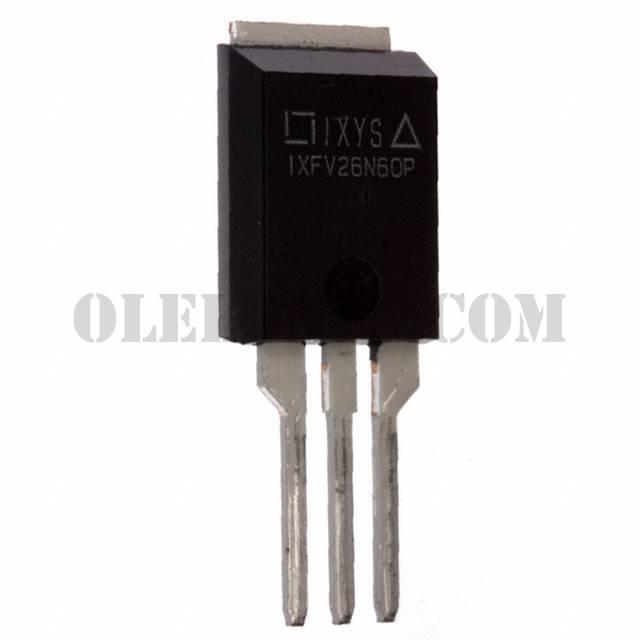

IXFV26N60P

Part NumberIXFV26N60P

ManufacturerIXYS

DescriptionMOSFET N-CH 600V 26A PLUS220

DatasheetIXF(H,T,V)26N60P/PS

Package / CaseTO-220-3, Short Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 26A (Tc) 460W (Tc) Through Hole PLUS220

To learn about the specification of IXFV26N60P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFV26N60P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFV26N60P.
We are offering IXFV26N60P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFV26N60P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXF(H,T,V)26N60P/PS

Standard Package

Manufacturer

IXYS

Series

PolarHV™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

26A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

270mOhm @ 500mA, 10V

Vgs(th) (Max) @ Id

5V @ 4mA

Gate Charge (Qg) (Max) @ Vgs

72nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

4150pF @ 25V

FET Feature

Power Dissipation (Max)

460W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PLUS220

Package / Case

TO-220-3, Short Tab
