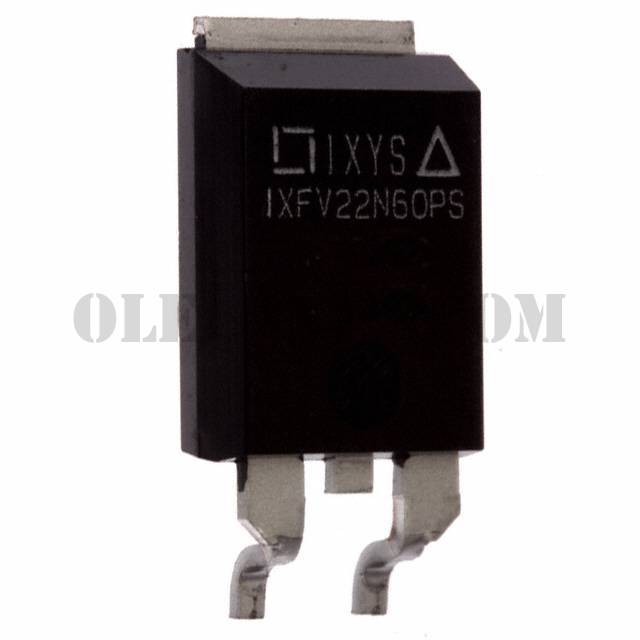

IXFV22N60PS

Part NumberIXFV22N60PS

ManufacturerIXYS

DescriptionMOSFET N-CH 600V 22A PLUS220-SMD

DatasheetIXFH22N60P, IXFV22N60P/PS

Package / CasePLUS-220SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 22A (Tc) 400W (Tc) Surface Mount PLUS-220SMD

To learn about the specification of IXFV22N60PS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFV22N60PS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFV22N60PS.
We are offering IXFV22N60PS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFV22N60PS - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXFH22N60P, IXFV22N60P/PS

Standard Package

Manufacturer

IXYS

Series

HiPerFET™, PolarHT™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

22A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

350mOhm @ 11A, 10V

Vgs(th) (Max) @ Id

5.5V @ 4mA

Gate Charge (Qg) (Max) @ Vgs

58nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

3600pF @ 25V

FET Feature

Power Dissipation (Max)

400W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PLUS-220SMD

Package / Case
