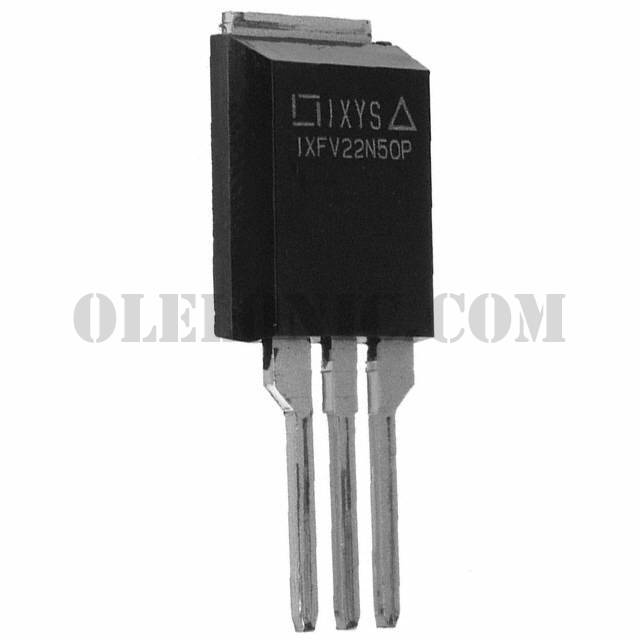

IXFV22N50P

Part NumberIXFV22N50P

ManufacturerIXYS

DescriptionMOSFET N-CH 500V 22A PLUS220

DatasheetIXFH22N50P, IXFV22N50P/PS

Package / CaseTO-220-3, Short Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 22A (Tc) 350W (Tc) Through Hole PLUS220

To learn about the specification of IXFV22N50P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFV22N50P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFV22N50P.
We are offering IXFV22N50P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFV22N50P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXFH22N50P, IXFV22N50P/PS

Standard Package

Manufacturer

IXYS

Series

HiPerFET™, PolarHT™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

500V

Current - Continuous Drain (Id) @ 25°C

22A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

270mOhm @ 11A, 10V

Vgs(th) (Max) @ Id

5.5V @ 2.5mA

Gate Charge (Qg) (Max) @ Vgs

50nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

2630pF @ 25V

FET Feature

Power Dissipation (Max)

350W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PLUS220

Package / Case

TO-220-3, Short Tab
