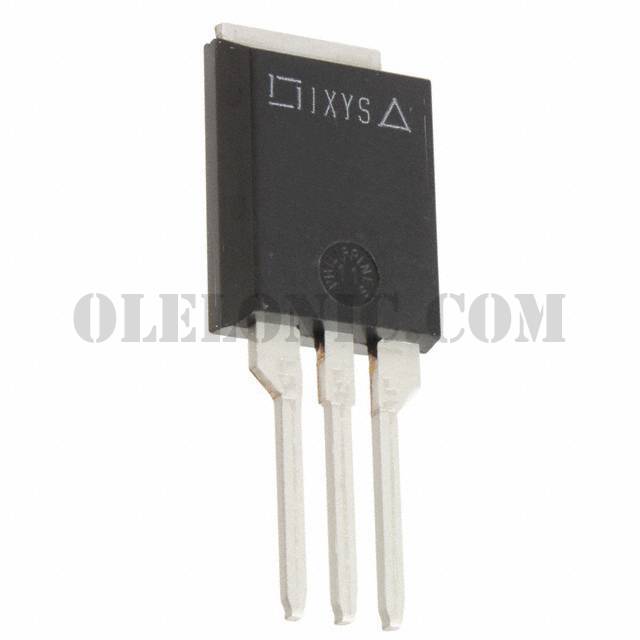

IXFV12N90P

Part NumberIXFV12N90P

ManufacturerIXYS

DescriptionMOSFET N-CH 900V 12A PLUS220

DatasheetIXF(H,V)12N90P/PS

Package / CaseTO-220-3, Short Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 900V 12A (Tc) 380W (Tc) Through Hole PLUS220

To learn about the specification of IXFV12N90P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFV12N90P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFV12N90P.
We are offering IXFV12N90P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFV12N90P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXF(H,V)12N90P/PS

Standard Package

Manufacturer

IXYS

Series

HiPerFET™, PolarP2™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

900V

Current - Continuous Drain (Id) @ 25°C

12A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

900mOhm @ 6A, 10V

Vgs(th) (Max) @ Id

6.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

56nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

3080pF @ 25V

FET Feature

Power Dissipation (Max)

380W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PLUS220

Package / Case

TO-220-3, Short Tab
