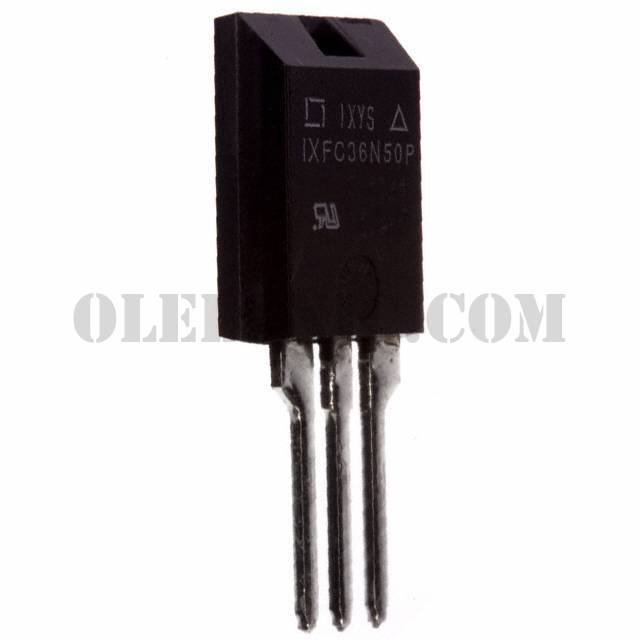

IXFC36N50P

Part NumberIXFC36N50P

ManufacturerIXYS

DescriptionMOSFET N-CH 500V 19A ISOPLUS220

DatasheetIXF(C,R)36N50P

Package / CaseISOPLUS220™

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 19A (Tc) 156W (Tc) Through Hole ISOPLUS220™

To learn about the specification of IXFC36N50P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFC36N50P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFC36N50P.
We are offering IXFC36N50P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFC36N50P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXF(C,R)36N50P

Standard Package

Manufacturer

IXYS

Series

HiPerFET™, PolarHT™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

500V

Current - Continuous Drain (Id) @ 25°C

19A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

190mOhm @ 18A, 10V

Vgs(th) (Max) @ Id

5V @ 4mA

Gate Charge (Qg) (Max) @ Vgs

93nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

5500pF @ 25V

FET Feature

Power Dissipation (Max)

156W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

ISOPLUS220™

Package / Case
