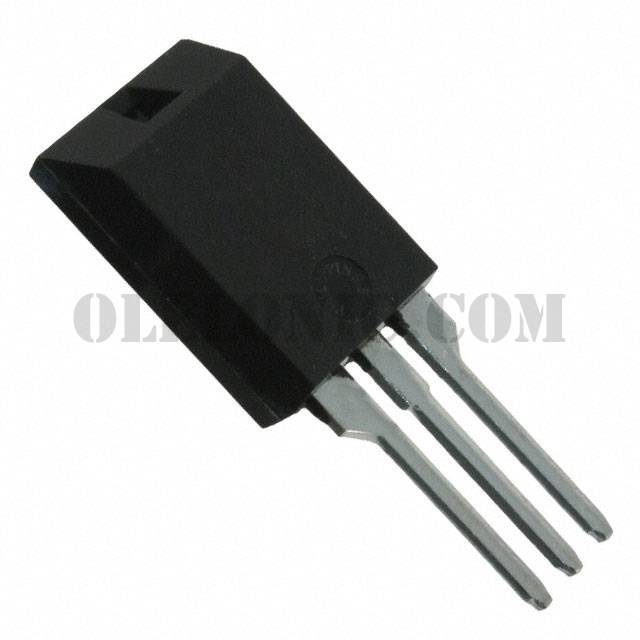

IXFC30N60P

Part NumberIXFC30N60P

ManufacturerIXYS

DescriptionMOSFET N-CH 600V 15A ISOPLUS220

DatasheetIXF(C,R)30N60P

Package / CaseISOPLUS220™

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 15A (Tc) 166W (Tc) Through Hole ISOPLUS220™

To learn about the specification of IXFC30N60P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFC30N60P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFC30N60P.
We are offering IXFC30N60P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFC30N60P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXF(C,R)30N60P

Standard Package

Manufacturer

IXYS

Series

HiPerFET™, PolarHT™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

15A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

250mOhm @ 15A, 10V

Vgs(th) (Max) @ Id

5V @ 4mA

Gate Charge (Qg) (Max) @ Vgs

85nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

3820pF @ 25V

FET Feature

Power Dissipation (Max)

166W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

ISOPLUS220™

Package / Case
