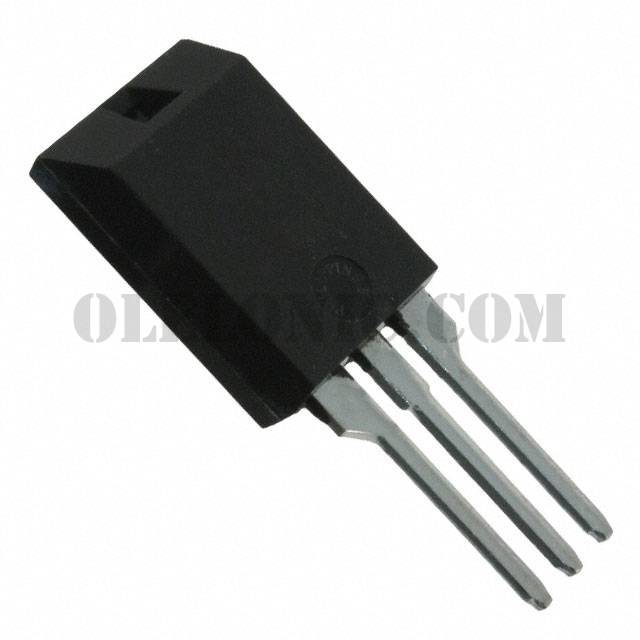

IXFC26N50

Part NumberIXFC26N50

ManufacturerIXYS

DescriptionMOSFET N-CH 500V 23A ISOPLUS220

DatasheetIXFC24N50, IXFC26N50

Package / CaseISOPLUS220™

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 23A (Tc) 230W (Tc) Through Hole ISOPLUS220™

To learn about the specification of IXFC26N50, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFC26N50 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFC26N50.
We are offering IXFC26N50 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFC26N50 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXFC24N50, IXFC26N50

Standard Package

Manufacturer

IXYS

Series

HiPerFET™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

500V

Current - Continuous Drain (Id) @ 25°C

23A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

200mOhm @ 13A, 10V

Vgs(th) (Max) @ Id

4V @ 4mA

Gate Charge (Qg) (Max) @ Vgs

135nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

4200pF @ 25V

FET Feature

Power Dissipation (Max)

230W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

ISOPLUS220™

Package / Case
