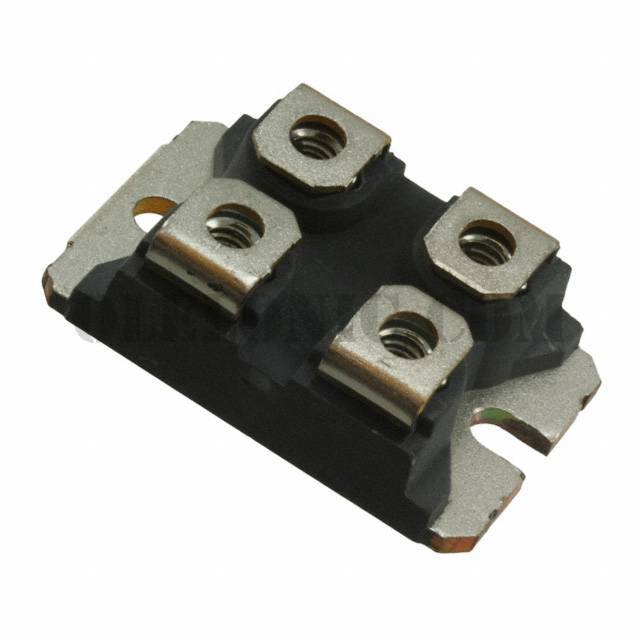

IXEN60N120D1

Part NumberIXEN60N120D1

ManufacturerIXYS

DescriptionIGBT NPT3 1200V 100A SOT-227B

DatasheetIXEN60N120(D1)

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Single 1200V 100A 445W Chassis Mount SOT-227B

To learn about the specification of IXEN60N120D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXEN60N120D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXEN60N120D1.
We are offering IXEN60N120D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXEN60N120D1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

IXEN60N120(D1)

Standard Package

Manufacturer

IXYS

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

100A

Power - Max

445W

Vce(on) (Max) @ Vge, Ic

2.7V @ 15V, 60A

Current - Collector Cutoff (Max)

800µA

Input Capacitance (Cies) @ Vce

3.8nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SOT-227-4, miniBLOC

Supplier Device Package

SOT-227B
