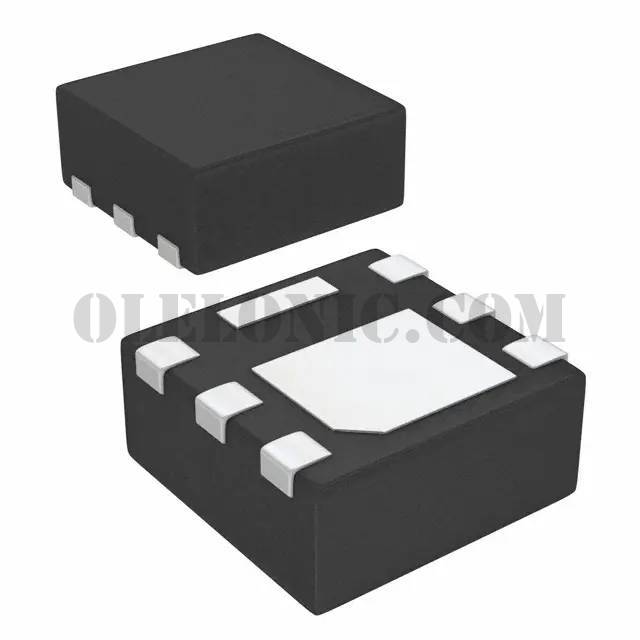

IRLHS2242TRPBF

IRLHS2242TRPBF

Part NumberIRLHS2242TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET P-CH 20V 15A 2X2 PQFN

DatasheetIRLHS22422PbF

Package / Case6-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 7.2A (Ta), 15A (Tc) 2.1W (Ta), 9.6W (Tc) Surface Mount 6-PQFN (2x2)

To learn about the specification of IRLHS2242TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRLHS2242TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRLHS2242TRPBF.
We are offering IRLHS2242TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRLHS2242TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRLHS22422PbF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	7.2A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	31mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	877pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 9.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-PowerVDFN
