IRLH5030TR2PBF

Part NumberIRLH5030TR2PBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 100V 13A 8PQFN

DatasheetIRLH5030PBF

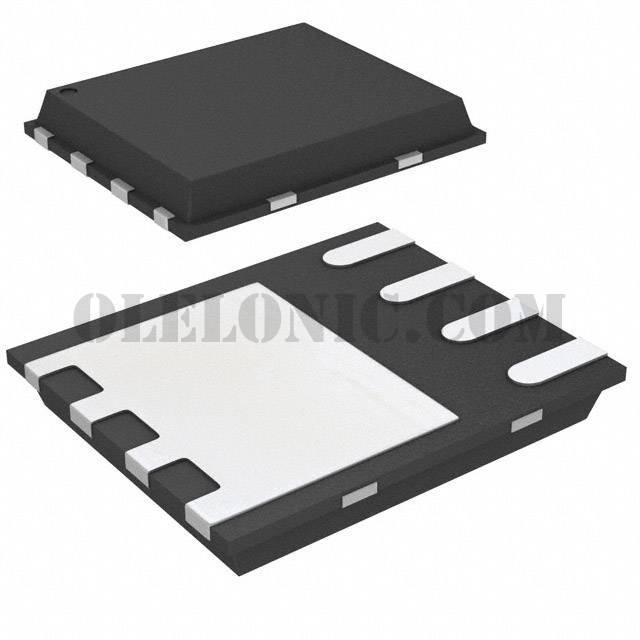

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 13A (Ta), 100A (Tc) 3.6W (Ta), 156W (Tc) Surface Mount PQFN (5x6) Single Die

To learn about the specification of IRLH5030TR2PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRLH5030TR2PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRLH5030TR2PBF.
We are offering IRLH5030TR2PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRLH5030TR2PBF - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IRLH5030PBF

Standard Package

Manufacturer

Infineon Technologies

Series

HEXFET®

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

100V

Current - Continuous Drain (Id) @ 25°C

13A (Ta), 100A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

9mOhm @ 50A, 10V

Vgs(th) (Max) @ Id

2.5V @ 150µA

Gate Charge (Qg) (Max) @ Vgs

94nC @ 10V

Vgs (Max)

±16V

Input Capacitance (Ciss) (Max) @ Vds

5185pF @ 50V

FET Feature

Power Dissipation (Max)

3.6W (Ta), 156W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PQFN (5x6) Single Die

Package / Case

8-PowerVDFN
