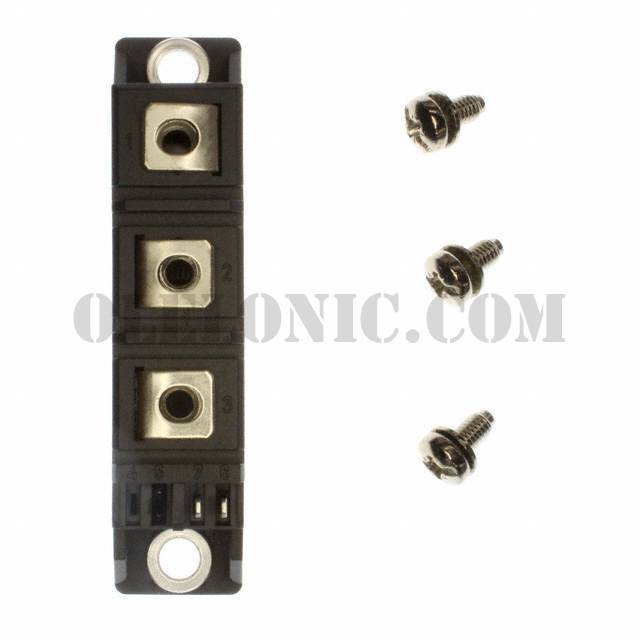

IRKL56/04A

Part NumberIRKL56/04A

ManufacturerVishay Semiconductor Diodes Division

DescriptionSCR DBL HISCR 400V 60A ADDAPAK

DatasheetIRK.41, .56 Series

Package / CaseADD-A-PAK (3 + 2)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR Module 400V 135A Series Connection - SCR/Diode Chassis Mount ADD-A-PAK (3 + 2)

To learn about the specification of IRKL56/04A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRKL56/04A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRKL56/04A.
We are offering IRKL56/04A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRKL56/04A - Product Attributes

Categories

Discrete Semiconductor Products / Thyristors - SCRs - Modules

Datasheet

IRK.41, .56 Series

Standard Package

Manufacturer

Vishay Semiconductor Diodes Division

Series

Packaging

Bulk

Part Status

Obsolete

Structure

Series Connection - SCR/Diode

Number of SCRs, Diodes

1 SCR, 1 Diode

Voltage - Off State

400V

Current - On State (It (AV)) (Max)

60A

Current - On State (It (RMS)) (Max)

135A

Voltage - Gate Trigger (Vgt) (Max)

2.5V

Current - Gate Trigger (Igt) (Max)

150mA

Current - Non Rep. Surge 50, 60Hz (Itsm)

1310A, 1370A

Current - Hold (Ih) (Max)

200mA

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

ADD-A-PAK (3 + 2)

Base Part Number

KL56
