IRGP30B120KD-EP

Part NumberIRGP30B120KD-EP

ManufacturerInfineon Technologies

DescriptionIGBT 1200V 60A 300W TO247AD

DatasheetIRGP30B120KD-EP

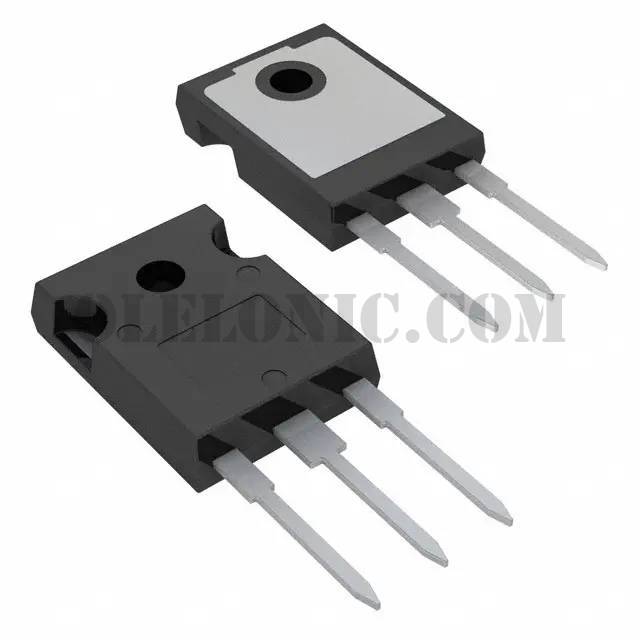

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT NPT 1200V 60A 300W Through Hole TO-247AD

To learn about the specification of IRGP30B120KD-EP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRGP30B120KD-EP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRGP30B120KD-EP.
We are offering IRGP30B120KD-EP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRGP30B120KD-EP - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

IRGP30B120KD-EP

Standard Package

Manufacturer

Infineon Technologies

Series

Packaging

Tube

Part Status

Not For New Designs

IGBT Type

NPT

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

60A

Current - Collector Pulsed (Icm)

120A

Vce(on) (Max) @ Vge, Ic

4V @ 15V, 60A

Power - Max

300W

Switching Energy

1.07mJ (on), 1.49mJ (off)

Input Type

Standard

Gate Charge

169nC

Td (on/off) @ 25°C

Test Condition

600V, 25A, 5Ohm, 15V

Reverse Recovery Time (trr)

300ns

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-247-3

Supplier Device Package

TO-247AD
