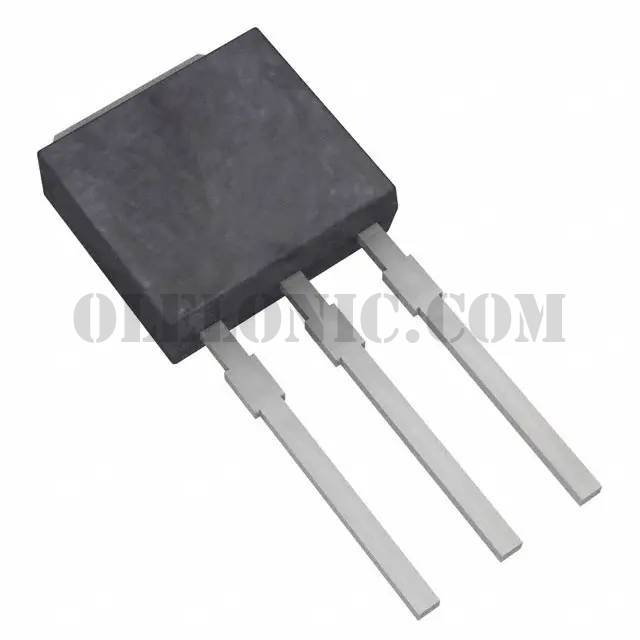

IRFU7440PBF

IRFU7440PBF

Part NumberIRFU7440PBF

ManufacturerInfineon Technologies

DescriptionMOSFET N CH 40V 90A I-PAK

DatasheetIRF(R,U)7440PbF

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 90A (Tc) 140W (Tc) Through Hole IPAK (TO-251)

To learn about the specification of IRFU7440PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFU7440PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFU7440PBF.
We are offering IRFU7440PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFU7440PBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF(R,U)7440PbF
Standard Package	75
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	2.4mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	3.9V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	134nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4610pF @ 25V
FET Feature	-
Power Dissipation (Max)	140W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	IPAK (TO-251)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
