IRFU420PBF

IRFU420PBF

Part NumberIRFU420PBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 500V 2.4A I-PAK

DatasheetIRFR420, IRFU420

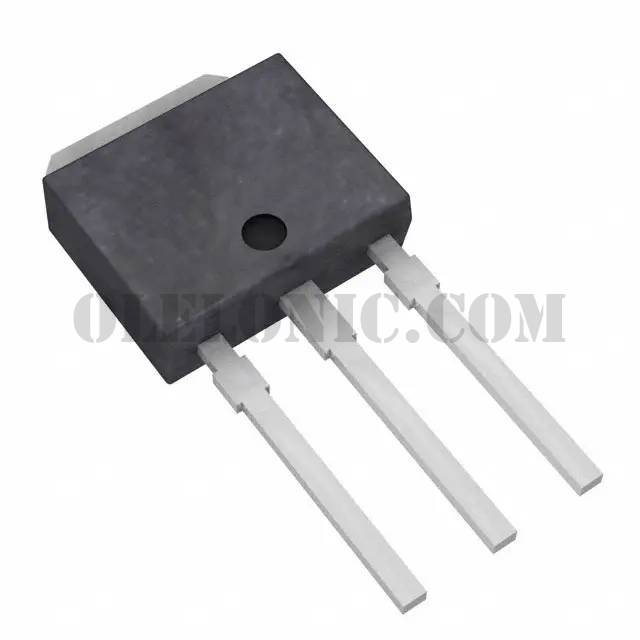

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 2.4A (Tc) 2.5W (Ta), 42W (Tc) Through Hole TO-251AA

To learn about the specification of IRFU420PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFU420PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFU420PBF.
We are offering IRFU420PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFU420PBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFR420, IRFU420
Standard Package	75
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	2.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3Ohm @ 1.4A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	360pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251AA
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
