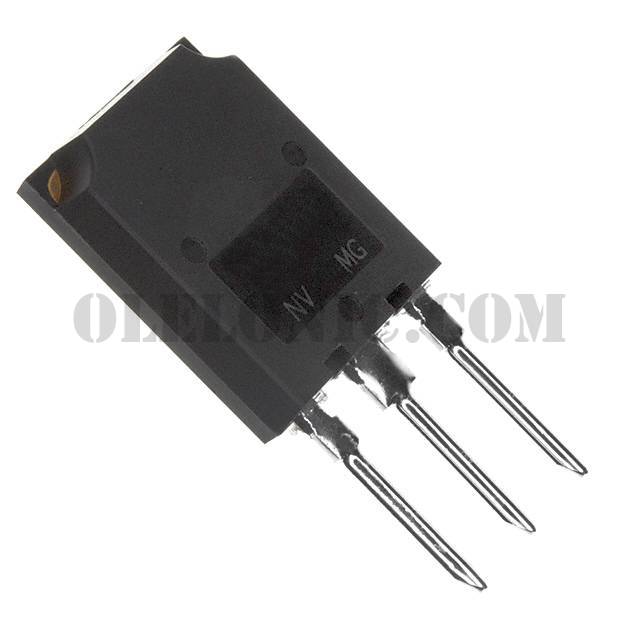

IRFPS38N60LPBF

IRFPS38N60LPBF

Part NumberIRFPS38N60LPBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 600V 38A SUPER247

DatasheetIRFPS38N60L,SIHFPS38N60L

Package / CaseTO-274AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 38A (Tc) 540W (Tc) Through Hole SUPER-247™ (TO-274AA)

To learn about the specification of IRFPS38N60LPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFPS38N60LPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFPS38N60LPBF.
We are offering IRFPS38N60LPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFPS38N60LPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFPS38N60L,SIHFPS38N60L
Standard Package	500
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	150mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	320nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7990pF @ 25V
FET Feature	-
Power Dissipation (Max)	540W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-247™ (TO-274AA)
Package / Case	TO-274AA
