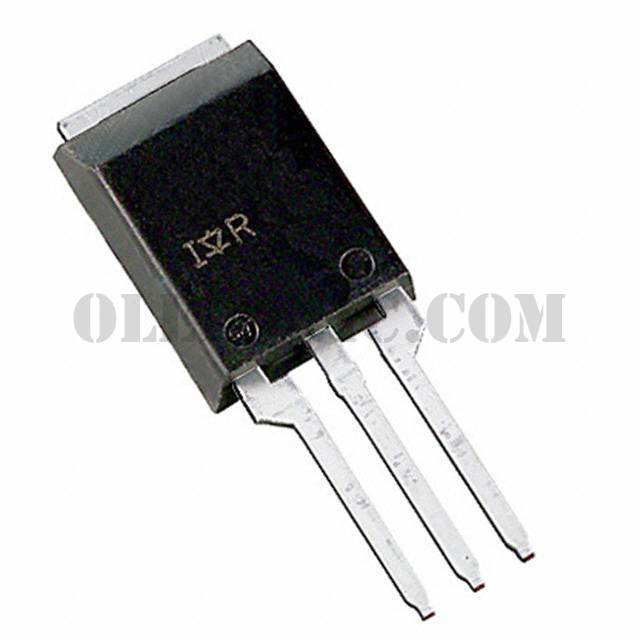

IRFBA1405PPBF

IRFBA1405PPBF

Part NumberIRFBA1405PPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 55V 174A SUPER-220

DatasheetIRFBA1405PPbF

Package / CaseSuper-220™-3 (Straight Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 174A (Tc) 330W (Tc) Through Hole SUPER-220™ (TO-273AA)

To learn about the specification of IRFBA1405PPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFBA1405PPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFBA1405PPBF.
We are offering IRFBA1405PPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFBA1405PPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFBA1405PPbF
Standard Package	50
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	174A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5mOhm @ 101A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	260nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5480pF @ 25V
FET Feature	-
Power Dissipation (Max)	330W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-220™ (TO-273AA)
Package / Case	Super-220™-3 (Straight Leads)
