IRF7946TRPBF

IRF7946TRPBF

Part NumberIRF7946TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N CH 40V 90A DIRECTFET MX

DatasheetIRF7946PbF

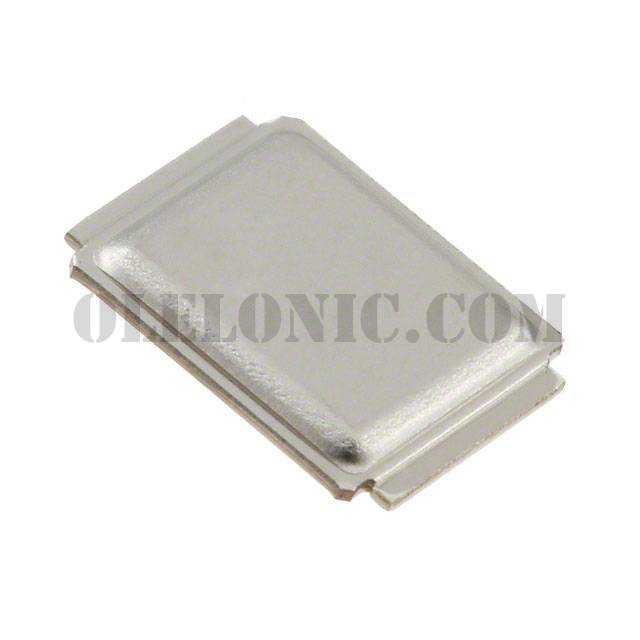

Package / CaseDirectFET™ Isometric MX

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 90A (Tc) 96W (Tc) Surface Mount DIRECTFET™ MX

To learn about the specification of IRF7946TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF7946TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF7946TRPBF.
We are offering IRF7946TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF7946TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF7946PbF
Standard Package	4800
Manufacturer	Infineon Technologies
Series	HEXFET®, StrongIRFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	3.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	212nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6852pF @ 25V
FET Feature	-
Power Dissipation (Max)	96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ MX
Package / Case	DirectFET™ Isometric MX
