IRF7769L1TRPBF

IRF7769L1TRPBF

Part NumberIRF7769L1TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 100V 20A DIRECTFET

DatasheetIRF7769L1TRPbF

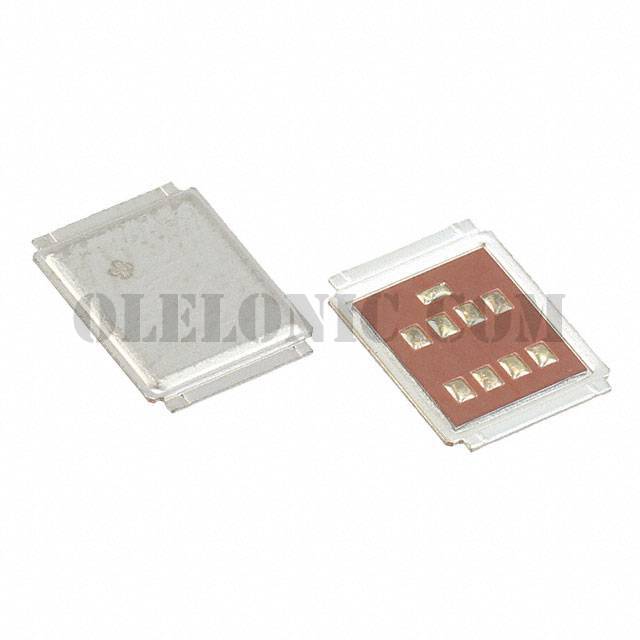

Package / CaseDirectFET™ Isometric L8

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 20A (Ta), 124A (Tc) 3.3W (Ta), 125W (Tc) Surface Mount DIRECTFET L8

To learn about the specification of IRF7769L1TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF7769L1TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF7769L1TRPBF.
We are offering IRF7769L1TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF7769L1TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF7769L1TRPbF
Standard Package	1
Manufacturer	Infineon Technologies
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 124A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.5mOhm @ 74A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	300nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11560pF @ 25V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET L8
Package / Case	DirectFET™ Isometric L8
