IRF7506TR

Part NumberIRF7506TR

ManufacturerInfineon Technologies

DescriptionMOSFET 2P-CH 30V 1.7A MICRO8

DatasheetIRF7506

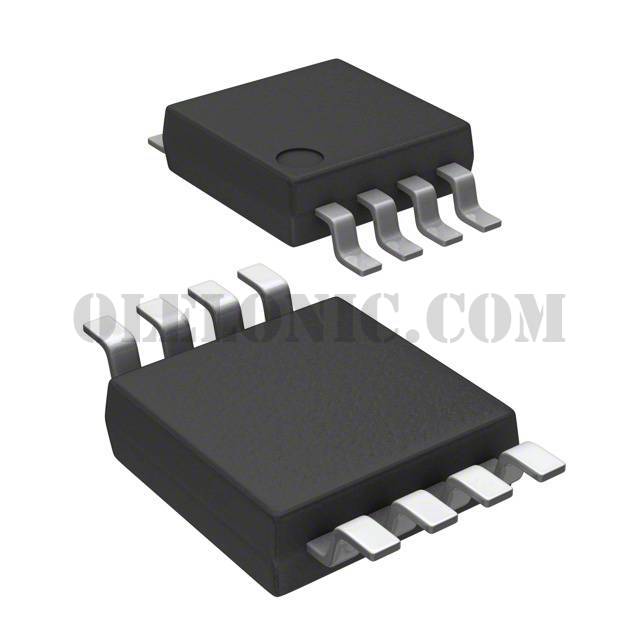

Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 30V 1.7A 1.25W Surface Mount Micro8™

To learn about the specification of IRF7506TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF7506TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF7506TR.
We are offering IRF7506TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF7506TR - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

IRF7506

Standard Package

Manufacturer

Infineon Technologies

Series

HEXFET®

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

2 P-Channel (Dual)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

1.7A

Rds On (Max) @ Id, Vgs

270mOhm @ 1.2A, 10V

Vgs(th) (Max) @ Id

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

11nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

180pF @ 25V

Power - Max

1.25W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package

Micro8™

Base Part Number
