IRF7401TRPBF

IRF7401TRPBF

Part NumberIRF7401TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 20V 8.7A 8-SOIC

DatasheetIRF7401PbF

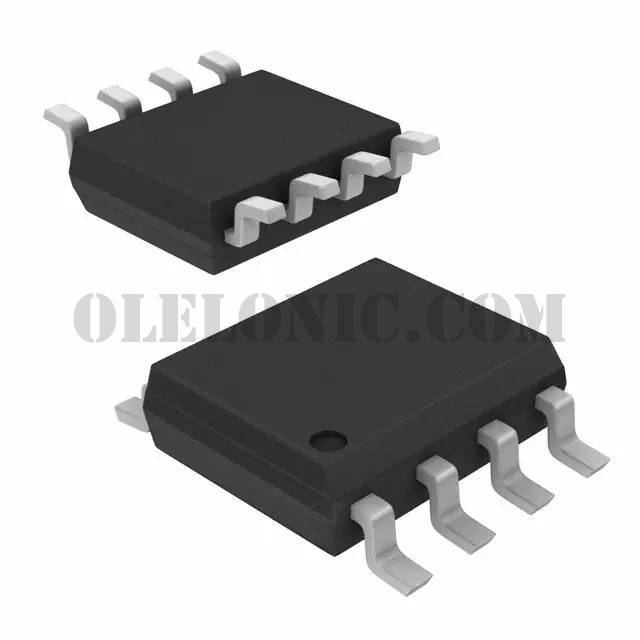

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 8.7A (Ta) 2.5W (Ta) Surface Mount 8-SO

To learn about the specification of IRF7401TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF7401TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF7401TRPBF.
We are offering IRF7401TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF7401TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF7401PbF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	8.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Rds On (Max) @ Id, Vgs	22mOhm @ 4.1A, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	48nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1600pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SO
Package / Case	8-SOIC (0.154", 3.90mm Width)
