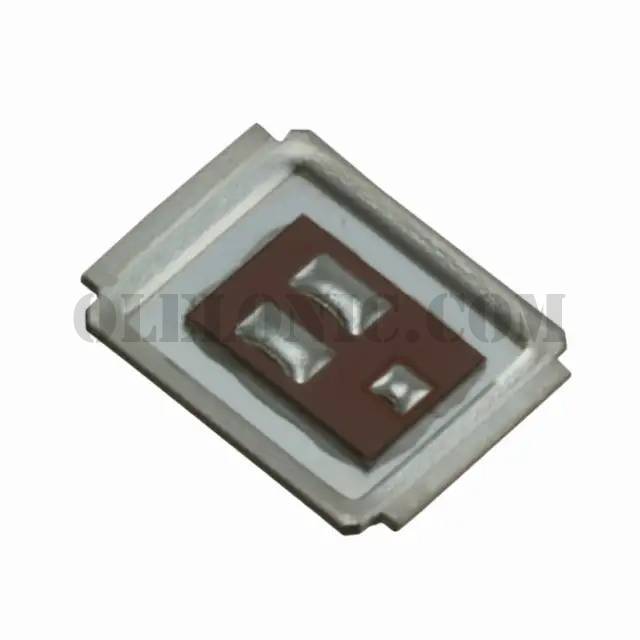

IRF6894MTRPBF


IRF6894MTRPBF

Part NumberIRF6894MTRPBF

Manufacturer

Description

Datasheet

Package / CaseDirectFET™ Isometric MX

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IRF6894MTRPBF - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerInfineon Technologies
SeriesHEXFET®
PackagingCut Tape (CT)
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C32A (Ta), 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.3mOhm @ 33A, 10V
Vgs(th) (Max) @ Id2.1V @ 100µA
Gate Charge (Qg) (Max) @ Vgs39nC @ 4.5V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds4160pF @ 13V
FET FeatureSchottky Diode (Body)
Power Dissipation (Max)2.1W (Ta), 54W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MX
Package / CaseDirectFET™ Isometric MX
