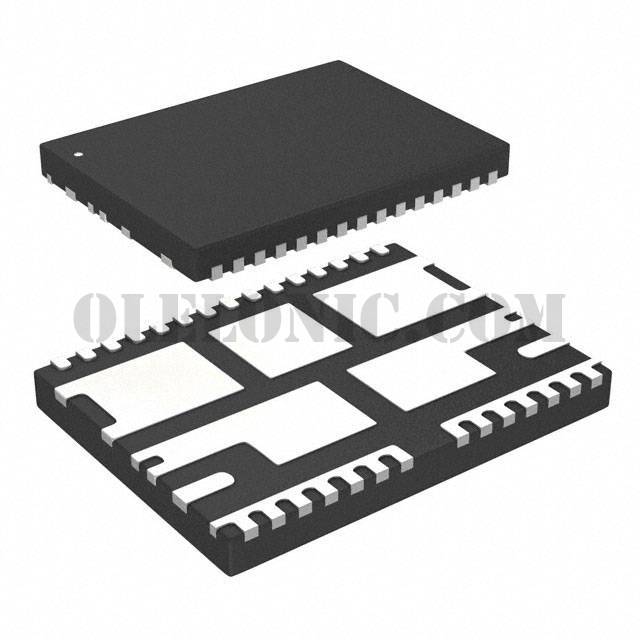

IRF3546MTRPBF

Part NumberIRF3546MTRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET 4N-CH 25V 16A/20A 41PQFN

DatasheetIRF3546

Package / Case41-PowerVFQFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel 25V 16A (Tc), 20A (Tc) Surface Mount 41-PQFN (6x8)

To learn about the specification of IRF3546MTRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF3546MTRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF3546MTRPBF.
We are offering IRF3546MTRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF3546MTRPBF - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

IRF3546

Standard Package

3000

Manufacturer

Infineon Technologies

Series

Packaging

Tape & Reel (TR)

Part Status

Last Time Buy

FET Type

4 N-Channel

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

25V

Current - Continuous Drain (Id) @ 25°C

16A (Tc), 20A (Tc)

Rds On (Max) @ Id, Vgs

3.9mOhm @ 27A, 10V

Vgs(th) (Max) @ Id

2.1V @ 35µA

Gate Charge (Qg) (Max) @ Vgs

15nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds

1310pF @ 13V

Power - Max

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

41-PowerVFQFN

Supplier Device Package

41-PQFN (6x8)
