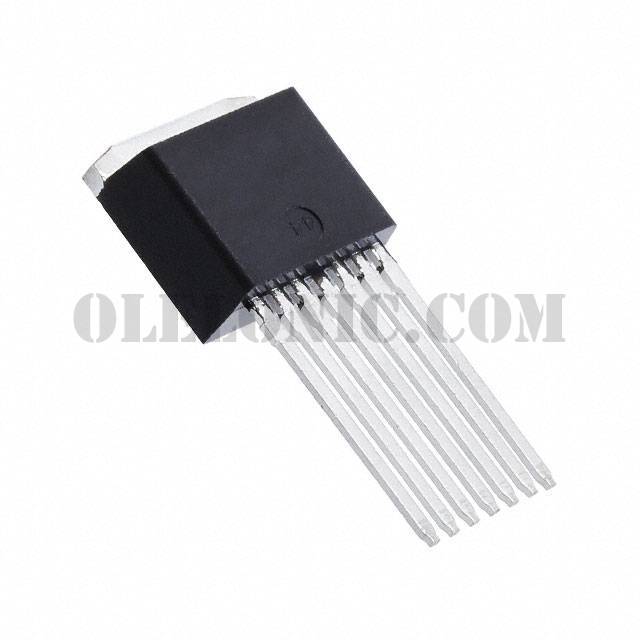

IRF1405ZL-7PPBF

Part NumberIRF1405ZL-7PPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 55V 150A TO263CA-7

DatasheetIRF1405Z (S,L) -7PPbF

Package / CaseTO-263-7 (Straight Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 120A (Tc) 230W (Tc) Through Hole TO-263CA-7

To learn about the specification of IRF1405ZL-7PPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF1405ZL-7PPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF1405ZL-7PPBF.
We are offering IRF1405ZL-7PPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF1405ZL-7PPBF - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IRF1405Z (S,L) -7PPbF

Standard Package

Manufacturer

Infineon Technologies

Series

HEXFET®

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

55V

Current - Continuous Drain (Id) @ 25°C

120A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

4.9mOhm @ 88A, 10V

Vgs(th) (Max) @ Id

4V @ 150µA

Gate Charge (Qg) (Max) @ Vgs

230nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

5360pF @ 25V

FET Feature

Power Dissipation (Max)

230W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-263CA-7

Package / Case

TO-263-7 (Straight Leads)
