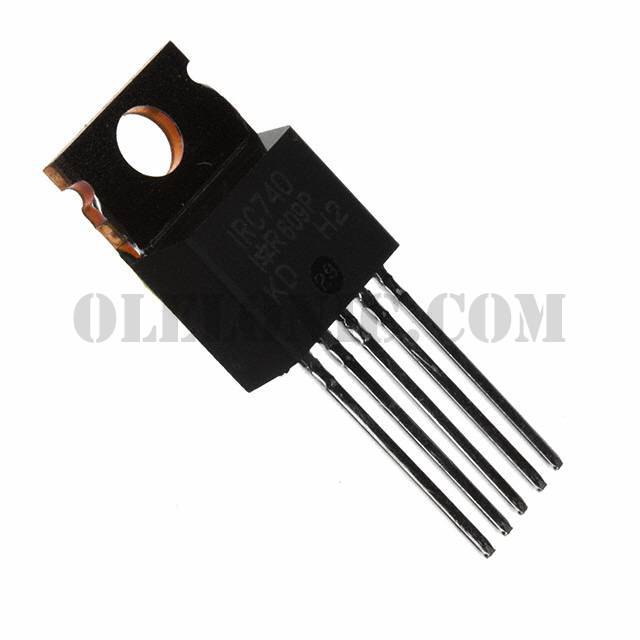

IRC740PBF

Part NumberIRC740PBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 400V 10A TO-220-5

DatasheetIRC740

Package / CaseTO-220-5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 400V 10A (Tc) 125W (Tc) Through Hole TO-220-5

To learn about the specification of IRC740PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRC740PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRC740PBF.
We are offering IRC740PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRC740PBF - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IRC740

Standard Package

Manufacturer

Vishay Siliconix

Series

HEXFET®

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

400V

Current - Continuous Drain (Id) @ 25°C

10A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

550mOhm @ 6A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

66nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1200pF @ 25V

FET Feature

Current Sensing

Power Dissipation (Max)

125W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-220-5
