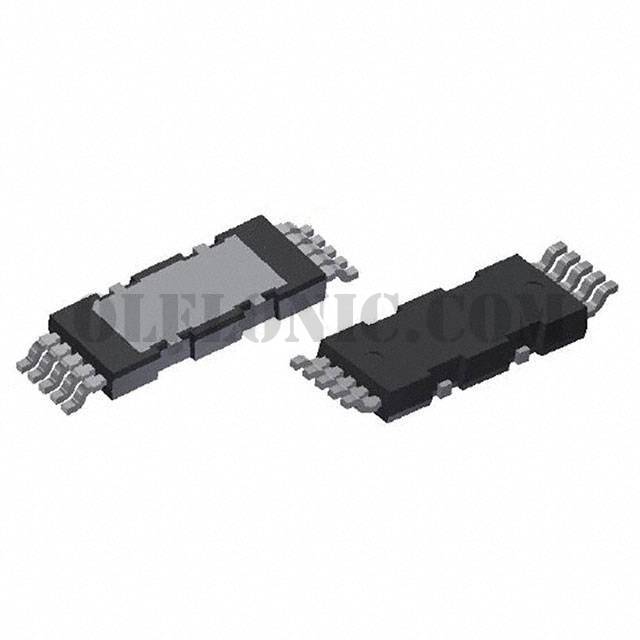

IPDD60R102G7XTMA1

IPDD60R102G7XTMA1

Part NumberIPDD60R102G7XTMA1

ManufacturerInfineon Technologies

DescriptionMOSFET NCH 650V 66A PG-HDSOP-10

DatasheetIPDD60R102G7

Package / Case10-PowerSOP Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 23A (Tc) 139W (Tc) Surface Mount PG-HDSOP-10-1

To learn about the specification of IPDD60R102G7XTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPDD60R102G7XTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPDD60R102G7XTMA1.
We are offering IPDD60R102G7XTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPDD60R102G7XTMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPDD60R102G7
Standard Package	1
Manufacturer	Infineon Technologies
Series	CoolMOS™ G7
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	102mOhm @ 7.8A, 10V
Vgs(th) (Max) @ Id	4V @ 390µA
Gate Charge (Qg) (Max) @ Vgs	34nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1320pF @ 400V
FET Feature	-
Power Dissipation (Max)	139W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HDSOP-10-1
Package / Case	10-PowerSOP Module
