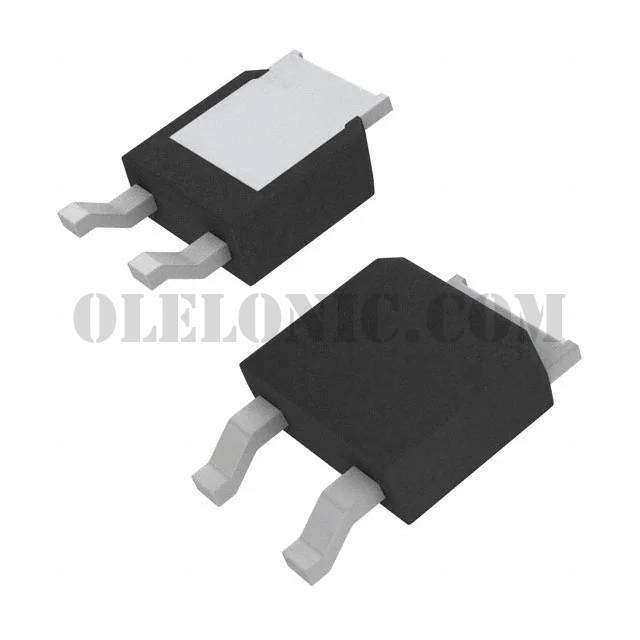

IPD80R1K4P7ATMA1

IPD80R1K4P7ATMA1

Part NumberIPD80R1K4P7ATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 800V 4A DPAK

DatasheetIPD80R1K4P7

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 800V 4A (Tc) 32W (Tc) Surface Mount TO-252

To learn about the specification of IPD80R1K4P7ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPD80R1K4P7ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPD80R1K4P7ATMA1.
We are offering IPD80R1K4P7ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPD80R1K4P7ATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPD80R1K4P7
Standard Package	1
Manufacturer	Infineon Technologies
Series	CoolMOS™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 1.4A, 10V
Vgs(th) (Max) @ Id	3.5V @ 700µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	250pF @ 500V
FET Feature	Super Junction
Power Dissipation (Max)	32W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
