IKQ100N60TXKSA1
IKQ100N60TXKSA1

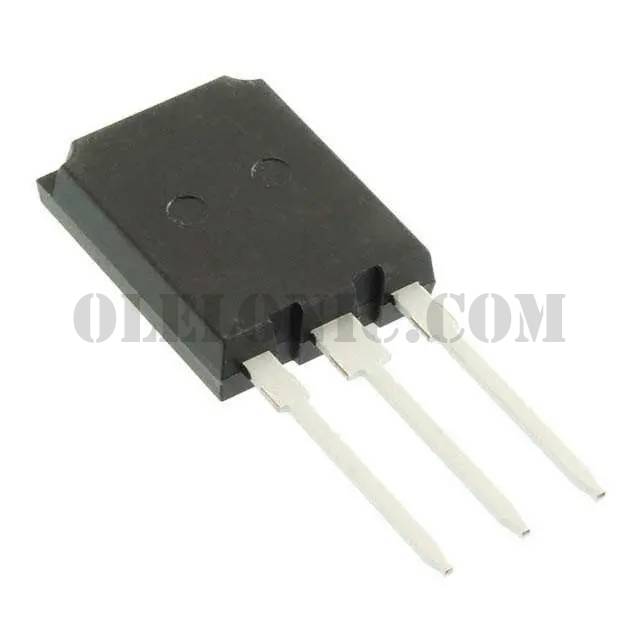

Part Number IKQ100N60TXKSA1 Description IGBT 600V 160A TO247-3-46 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 600V 160A 714W Through Hole PG-TO247-3-46
To learn about the specification of IKQ100N60TXKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKQ100N60TXKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKQ100N60TXKSA1.
We are offering IKQ100N60TXKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IKQ100N60TXKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IKQ100N60T Standard Package 240 Manufacturer Infineon Technologies Series TrenchStop™ Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 160A Current - Collector Pulsed (Icm) 400A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 100A Power - Max 714W Switching Energy 3.1mJ (on), 2.5mJ (off) Input Type Standard Gate Charge 610nC Td (on/off) @ 25°C 30ns/290ns Test Condition 400V, 100A, 3.6Ohm, 15V Reverse Recovery Time (trr) 230ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package PG-TO247-3-46
