Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

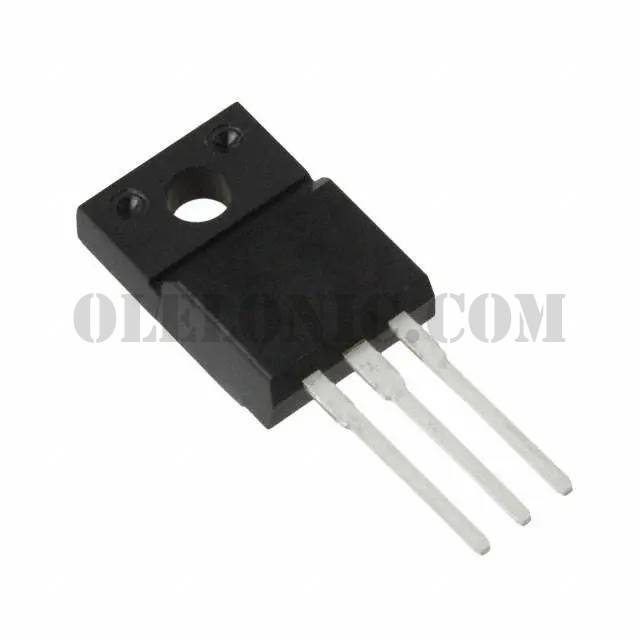

Datasheet	IKA15N65H5
Standard Package	500
Manufacturer	Infineon Technologies
Series	TrenchStop®
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	14A
Current - Collector Pulsed (Icm)	45A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 15A
Power - Max	33.3W
Switching Energy	120µJ (on), 50µJ (off)
Input Type	Standard
Gate Charge	38nC
Td (on/off) @ 25°C	17ns/160ns
Test Condition	400V, 7.5A, 39Ohm, 15V
Reverse Recovery Time (trr)	48ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220-3
