IHLP5050CEERR22M01

Part NumberIHLP5050CEERR22M01

ManufacturerVishay Dale

DescriptionFIXED IND 220NH 38.5A 1.3 MOHM

DatasheetIHLP5050CE-01 Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220nH Shielded Molded Inductor 38.5A 1.3mOhm Max Nonstandard

To learn about the specification of IHLP5050CEERR22M01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IHLP5050CEERR22M01 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IHLP5050CEERR22M01.
We are offering IHLP5050CEERR22M01 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IHLP5050CEERR22M01 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

IHLP5050CE-01 Datasheet

Standard Package

500

Manufacturer

Vishay Dale

Series

IHLP-5050CE-01

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Molded

Material - Core

Inductance

220nH

Tolerance

±20%

Current Rating (Amps)

38.5A

Current - Saturation

65A

Shielding

Shielded

DC Resistance (DCR)

1.3mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

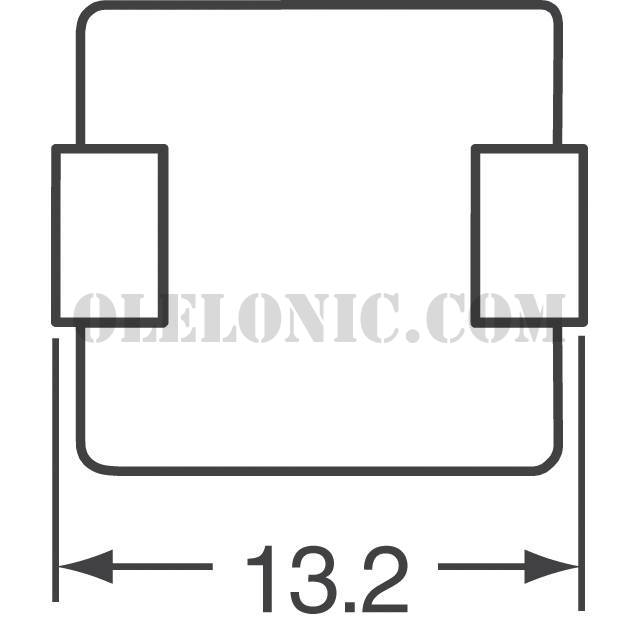

0.520" L x 0.508" W (13.20mm x 12.90mm)

Height - Seated (Max)

0.138" (3.50mm)
