IHLP2525CZER4R7M8A
IHLP2525CZER4R7M8A

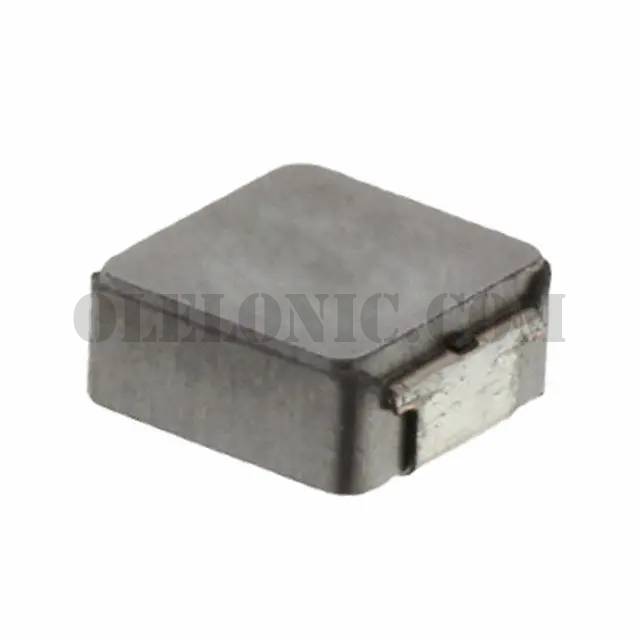

Part Number IHLP2525CZER4R7M8A Description FIXED IND 4.7UH 5.6A 38.4 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 4.7µH Shielded Molded Inductor 5.6A 38.4mOhm Max Nonstandard
To learn about the specification of IHLP2525CZER4R7M8A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IHLP2525CZER4R7M8A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IHLP2525CZER4R7M8A.
We are offering IHLP2525CZER4R7M8A for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IHLP2525CZER4R7M8A - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet IHLP-2525CZ-8A DataSheet Standard Package 2000 Manufacturer Vishay Dale Series IHLP-2525CZ-8A Packaging Tape & Reel (TR) Part Status Active Type Molded Material - Core - Inductance 4.7µH Tolerance ±20% Current Rating (Amps) 5.6A Current - Saturation 5.6A Shielding Shielded DC Resistance (DCR) 38.4mOhm Max Q @ Freq - Frequency - Self Resonant 25.5MHz Ratings AEC-Q200 Operating Temperature -55°C ~ 180°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.270" L x 0.255" W (6.86mm x 6.47mm) Height - Seated (Max) 0.118" (3.00mm)
