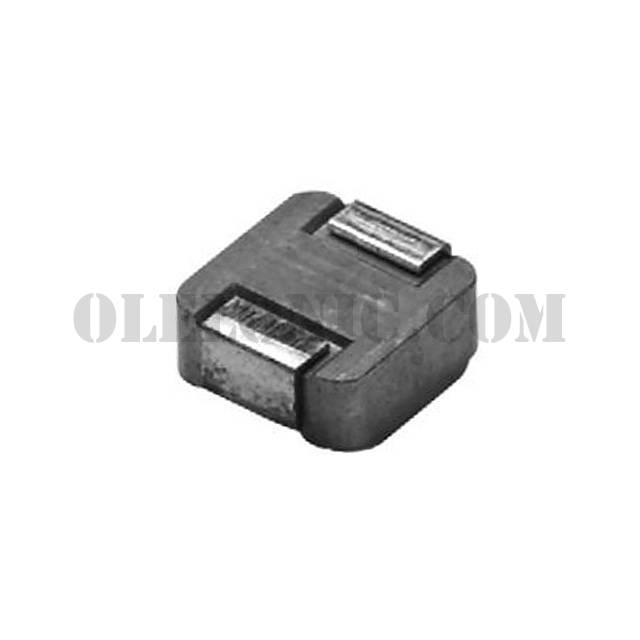

IHLP1616BZERR10M0H
IHLP1616BZERR10M0H
Part Number IHLP1616BZERR10M0H
Description IHLP-1616BZ-0H .1 20% ER E3
Package / Case Nonstandard, 2 Lead
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 100nH Shielded Inductor 14A 5.9mOhm Max Nonstandard, 2 Lead
To learn about the specification of IHLP1616BZERR10M0H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IHLP1616BZERR10M0H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IHLP1616BZERR10M0H.
We are offering IHLP1616BZERR10M0H for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IHLP1616BZERR10M0H - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet IHLP-1616BZ-0H Series Datasheet
Standard Package 1
Manufacturer Vishay Dale
Series IHLP-1616BZ-0H
Packaging Cut Tape (CT)
Part Status Active
Type -
Material - Core Ferrite
Inductance 100nH
Tolerance ±20%
Current Rating (Amps) 14A
Current - Saturation 36A
Shielding Shielded
DC Resistance (DCR) 5.9mOhm Max
Q @ Freq -
Frequency - Self Resonant 485MHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard, 2 Lead
Supplier Device Package -
Size / Dimension 0.160" L x 0.160" W (4.06mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
