IGP40N65F5XKSA1
IGP40N65F5XKSA1

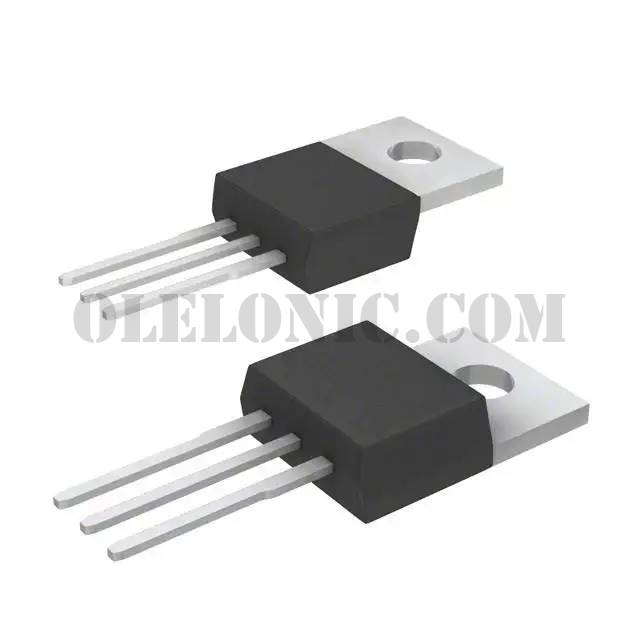

Part Number IGP40N65F5XKSA1 Description IGBT 650V 74A 255W PG-TO220-3 Package / Case TO-220-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 650V 74A 255W Through Hole PG-TO220-3
To learn about the specification of IGP40N65F5XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IGP40N65F5XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IGP40N65F5XKSA1.
We are offering IGP40N65F5XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IGP40N65F5XKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IGP,W40N65F5 Standard Package 500 Manufacturer Infineon Technologies Series TrenchStop® Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 74A Current - Collector Pulsed (Icm) 120A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 40A Power - Max 255W Switching Energy 360µJ (on), 100µJ (off) Input Type Standard Gate Charge 95nC Td (on/off) @ 25°C 19ns/160ns Test Condition 400V, 20A, 15Ohm, 15V Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Supplier Device Package PG-TO220-3
