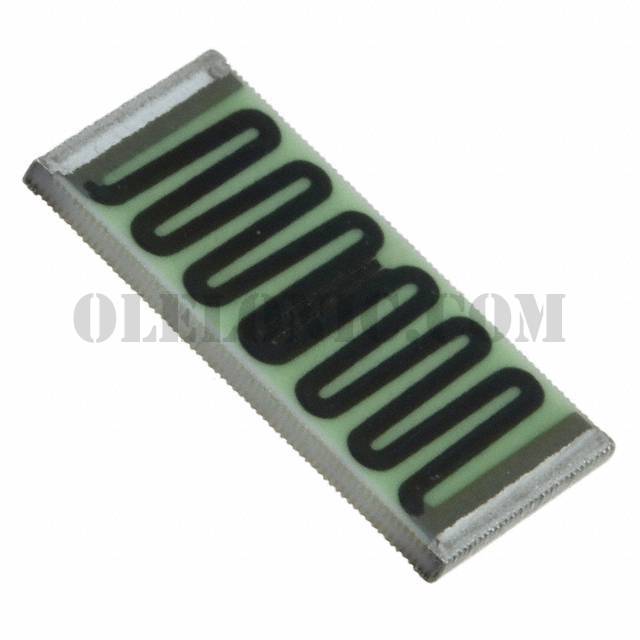

HVC4020V2506JET


HVC4020V2506JET

Part NumberHVC4020V2506JET

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

HVC4020V2506JET - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package1
ManufacturerOhmite
SeriesHVC
PackagingCut Tape (CT)
Part StatusActive
Resistance250 MOhms
Tolerance±5%
Power (Watts)1.5W
CompositionThick Film
FeaturesHigh Voltage
Temperature Coefficient±50ppm/°C
Operating Temperature-55°C ~ 155°C
Package / CaseNonstandard
Supplier Device Package4020
Size / Dimension0.402" L x 0.201" W (10.20mm x 5.10mm)
Height - Seated (Max)0.031" (0.80mm)
Number of Terminations2
Failure Rate-
