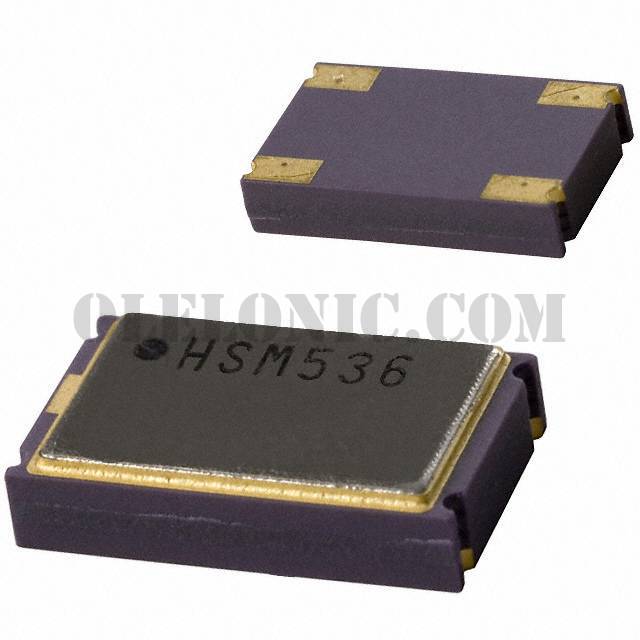

HSM536-18.4320

Part NumberHSM536-18.4320

ManufacturerConnor-Winfield

DescriptionXTAL OSC XO 18.4320MHZ HCMOS SMD

DatasheetHSM546,516,526,536

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description18.432MHz XO (Standard) HCMOS Oscillator 5V Enable/Disable 4-SMD, No Lead

To learn about the specification of HSM536-18.4320, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HSM536-18.4320 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HSM536-18.4320.
We are offering HSM536-18.4320 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HSM536-18.4320 - Product Attributes

Categories

Crystals, Oscillators, Resonators / Oscillators

Datasheet

HSM546,516,526,536

Standard Package

Manufacturer

Connor-Winfield

Series

HSM536

Packaging

Tube

Part Status

Active

Base Resonator

Crystal

Type

XO (Standard)

Frequency

18.432MHz

Function

Enable/Disable

Output

HCMOS

Voltage - Supply

Frequency Stability

±100ppm

Absolute Pull Range (APR)

Operating Temperature

0°C ~ 70°C

Current - Supply (Max)

20mA

Ratings

Mounting Type

Surface Mount

Package / Case

4-SMD, No Lead

Size / Dimension

0.435" L x 0.250" W (11.05mm x 6.35mm)

Height - Seated (Max)

0.105" (2.67mm)

Current - Supply (Disable) (Max)
