Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	HS1AFL - HS1MFL
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io)	1A (DC)
Voltage - Forward (Vf) (Max) @ If	950mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	5µA @ 300V
Capacitance @ Vr, F	11pF @ 4V, 1MHz
Mounting Type	Surface Mount

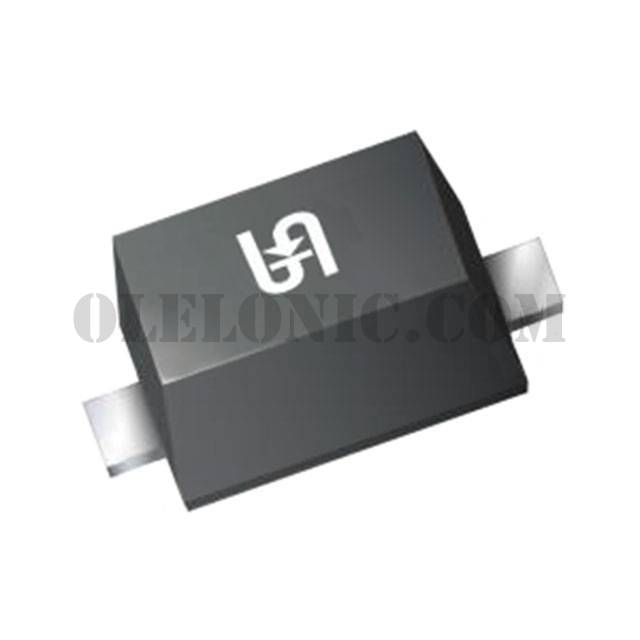

Package / Case	SOD-123F
Supplier Device Package	SOD-123FL
Operating Temperature - Junction	-55°C ~ 150°C
