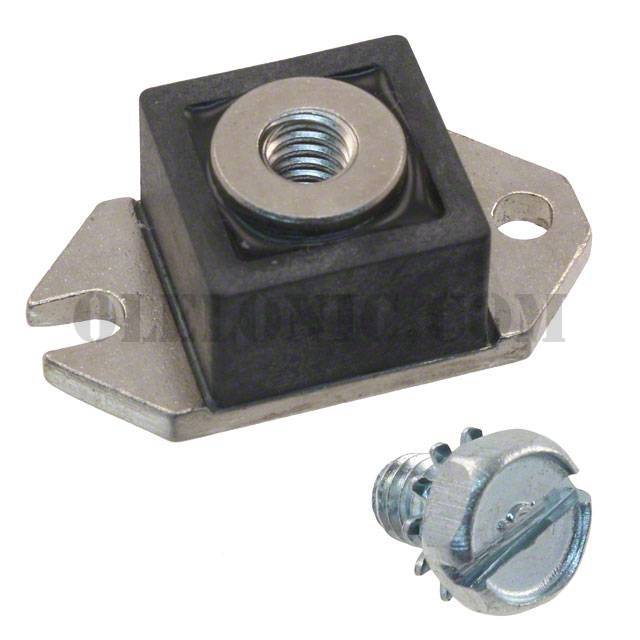

HS12045

Part NumberHS12045

ManufacturerMicrosemi Corporation

DescriptionDIODE SCHOTTKY 45V 120A HALFPAK

DatasheetHS12035/40/45

Package / CaseHALF-PAK

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 45V 120A Chassis Mount HALF-PAK

To learn about the specification of HS12045, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HS12045 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HS12045.
We are offering HS12045 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HS12045 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

HS12035/40/45

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Obsolete

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

45V

Current - Average Rectified (Io)

120A

Voltage - Forward (Vf) (Max) @ If

550mV @ 120A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

5mA @ 45V

Capacitance @ Vr, F

5500pF @ 5V, 1MHz

Mounting Type

Chassis Mount

Package / Case

HALF-PAK

Supplier Device Package
